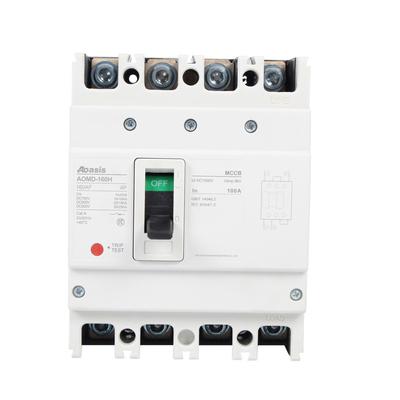

AOASIS AOMD-160H/4300 MCCB Circuit-Breaking DC 4P 16A-160A DC250V-DC1000V Molded Case MCCB DC Circuit Breaker

1.0 Pieces
MOQ
AOASIS AOMD-160H/4300 MCCB Circuit-Breaking DC 4P 16A-160A DC250V-DC1000V Molded Case MCCB DC Circuit Breaker
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: AOMD-160H
Rated Voltage: Other
Poles Number: 4
Product name: MCCB DC Circuit Breaker
Rated current: 16A,20A,32A,40A,50A,63A,80A,100A,125A,160A
Rated voltage: DC250V,DC500V,DC750V,DC1000V,
Rated insulation voltage: DC1000V
Pole: 2P 3P 4P
Breaking capacity: DC250V(35KA),DC500V(25KA),DC750V(15KA),DC1000V(10KA)
Material: High Standard Plastic Silver Copper
Rated frequency: 50/60 Hz
Application: Circuit-breaking
Certificate: CCC CE CB ISO9001
Type: Moulded Case
基本情報
証明: CCC CE CB ISO9001
Model Number: AOMD-160H
お支払配送条件
Packaging Details: Export Carton
Supply Ability: 9999999 Piece/Pieces per Month
製品の説明
AOMD series DC moulded-case circuit breaker is suitable for DC systems of rated voltage up to
and including DC 1000V and rated current 10~800A, used to distribute electric power energy,
protect circuits and power equipment against overload , short circuit and so on .
Type
AOMD-125H
AOMD-160H
AOMD-250H
Pole
2P, 3P, 4P
2P, 3P, 4P
2P, 3P, 4P

Rated current (A)
16, 20, 32, 40, 50,
63, 80, 100, 125
16, 20, 32, 40, 50,63, 80, 100, 125, 140, 160
125, 140, 160, 180, 200, 225, 250
Rated voltage
DC250V, DC500V, DC750V, DC1000V
DC250V, DC500V, DC750V, DC1000V
DC250V, DC500V, DC750V, DC1000V
Rated insulation voltage
DC1000V
DC1000V
DC1000V
Short-circuit breaking capacity (KA)
lcu(lcs=70%Icu)
DC250V(35kA), DC500V(25kA), DC750V(15kA), DC1000V(10kA)
DC250V(35kA), DC500V(25kA), DC750V(15kA), DC1000V(10kA)
DC250V(35kA), DC500V(25kA), DC750V(15kA), DC1000V(10kA)
Operating cycle number
ON
6000
3000
3000
OFF
9000
7000
7000

Outline dim. (mm)
a-b-c-ca
2P
50-130-68-90
60-155-88-115
-
3P
75-130-68-90
90-155-88-115
105-165-88-115
4P
100-130-68-90
120-155-88-115
140-165-88-115

Weight (kg)
2P
0.55
1.0
-
3P
0.65
1.1
1.5
4P
0.8
1.4
1.9
Electric operating device (MD)
External driving operating handle
Automatic release
Thermal electromagnetic type
Thermal electromagnetic type
Thermal electromagnetic type
Type
AOMD-400M
AOMD-800H
Pole
2P, 3P, 4P
2P, 3P, 4P
Rated current (A)
250, 315, 350, 400
500, 630, 700, 800
Rated voltage (V)
DC250V, DC500V, DC750V, DC1000V
DC250V, DC500V, DC750V, DC1000V
Rated insulation voltage (V)
DC1000V
DC1000V
Short-circuit breaking capacity (KA)
lcu(lcs=70%Icu)
DC250V(65kA), DC500V(35kA),
DC750V(25kA), DC1000V(15kA)
DC250V(65kA), DC500V(35kA), DC750V(25kA), DC1000V(15kA)

Operating cycle number
ON
2000
1500
OFF
4000
4000

Outline dim. (mm)
a-b-c-ca
2P
140-257-103-155
210-275-103-155
3P
140-257-103-155
210-275-103-155
4P
184-257-103-155
280-275-103-155

Weight (kg)
2P
5.0
9.5
3P
5.7
12.5
4P
7.5
1.4
Electric operating device (MD)
External driving operating handle
Automatic release
Thermal electromagnetic type
Thermal electromagnetic type
*Product size information is for reference and the actual product shall prevail.
