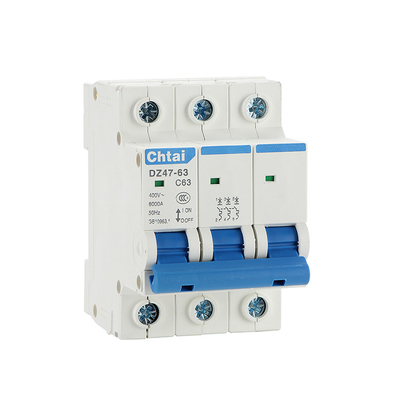

Wholesale 6KA dz47-63 c63 3p C D Din Rail MCB Manufacturer With CB SEMKO CE CERTIFICATE Mini Circuit Breaker

1.0 Pieces
MOQ
Wholesale 6KA dz47-63 c63 3p C D Din Rail MCB Manufacturer With CB SEMKO CE CERTIFICATE Mini Circuit Breaker
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: DZ47-63
Breaking Capacity: 3/6KA
Rated Voltage: 230/400V
Rated Current: 63A
BCD Curve: C
Type: Mini
Poles Number: 1-4P
Material: PA66
Thermo-magnetic release characteristic: C D
Electrical Life(Time): 10000 Times
Mechanical Life: 10000 Times
Working Temperature: -5℃ to 40℃
Standard: IEC60898/GB10963.1
Certificate: CCC CE
OEM ODM: avaiable
基本情報
証明: CCC CE
Model Number: DZ47-63
お支払配送条件
Supply Ability: 5000 Piece/Pieces per Day
製品の説明
Products Description

Range of application

DZ47-63 series high-break mini-circuit breaker with advanced structure, reliable performance, quick tripping, guide rail installation, shell and components with impact resistance and high flame retardant material composition. Long service life. Suitable for ac 50-60Hz, single stage 230V, two, three, four pole 400V, current to 63A circuit for overload and short circuit protection, but also under normal circumstances for infrequent line conversion, on and off electrical devices, especially for industrial and commercial lighting distribution system.
The product conforms to IEC60898 and GB10963.1 and other standards.
Product Paramenters
Number
DZ47-63
Rated current(In)
1A,2A,3A,4A,6A,10A,16A,20A,25A,32A,40A,50A,63A
Poles
1P,2P,3P,4P
Material
PA66
Rated voltage(Ue)
1P: 230V 2P/3P/4P: 400V
Rated frequency
50/60Hz
Rated breaking capacity
6KA
Thermo-magnetic release characteristic
C D
Electrical Life
10000
Mechanical Life
10000
Working Temperature
-5℃ to 40℃
Protection degree
IP20
Standard
IEC60898/GB10963.1
Certificate
CCC CE
OEM ODM
avaiable
Rated Voltage(V)
Poles
Rated CurrentIn(A)
Rated Short Circuit Breaking Capacity Icu(KA)
Power Factor
230
1
6,10,16,20,25,
6
0.65-0.7
230/400
2
32,40
6
0.65-0.7
400
3,4

6
0.65-0.7
230
1
50,63
4
0.75-0.80
230/400
2

4
0.75-0.80
400
3,4

4
0.75-0.80
Details Images
Application
Certifications
Company Profile
Wenzhou Xinghe Import & Export Co.,Ltd. is a high-tech enterprise that engaged indesigning,developing,manufacturing and selling low-voltage air circuit breaker and socket,Surge protective device and so on. Our products have proven popular all over the world.
Xinghe Company Is a leading supplier of electrical accessories in China.We have our own factory and raw material production base in Zhejiang province. Our main products now include circuit breakers, AC contactors, timers, relays, fuses, push buttons,switches, modular sockets,industrial plugs and sockets, and multi-meters.We have a wide range of products, good quality,reasonable price and novel style, at the same time, we can provide fast delivery and efficient after-sales service.
In the fierce market competition, the company adhere to the tenet that "brand is benefit", providing our customers with quality products and enthusiastic service.
We sincerely welcome customers from home and abroad to cooperate with and create a bright future together.
FAQ

Q1:When can I receive quotation and detail information after send the enquiry?

A: Reply will be sent in 24hours.

Q2: Do you provide samples ? is it free or extra ?

A: Yes,We are honored to provide you with samples of what you need before place order on free but do not pay the cost of freight.

Q3: How can I get some samples?

A: Please contact us and leave detailed contact information, we promise to keep your information confidential.

Q4:What's the delivery time?

A: Samples cost 5-7 days. Bulk order usually takes 7-15days after confirming the payment,but the specific time shall be determined according to the order quantity.

Q5:Do you accept OEM business?

A:Yes, we do.

Q6:Do you have a warranty policy?

A:Our products are warranty for two years and full lifespan aftersales service.
