| Part Number | E73 |

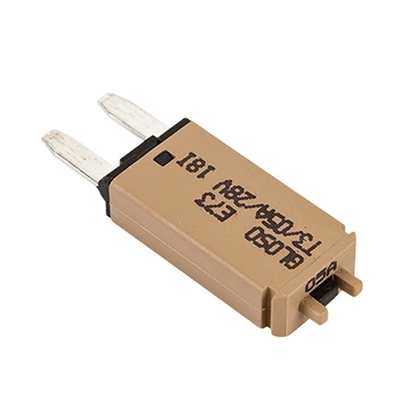

| Description | E73 Mini Circuit Breaker T3, Manual Reset Compatible with 280 Type fuse blocks using 0.32" (8.1mm) centerline spacing Type 3, ATM Footprint Circuit Breaker |
| Family | Thermal Circuit Breakers |
| Category | E7 |
| Series | E73 |
| Voltage | 14Vdc |
| Rated Current | 5-30A |
| Reset Type | T3, Manual Reset |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) |
| Dimension | 26x12.4x6.4 mm |
| Weight | 4 g |
| RoHS | Y |
| Standard Pack | 1500 |
| Regulatory Sepcification | SAE J553 |
| HS Code | 8536500000 |
| Termination | 0.32" (8.1mm) centerline spacing (Mini Type) |
| Body | 94V0 Themoplastic Housing |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) |
Product Advantage:
| 1 | Drop in Replacement with Buss 233 series |
| 2 | Max Interrupt Rating 450A @ 14Vdc |
| 3 | 5-30Amp |
| 4 | SAE J553; ISO 10924; |
| 5 | Amperage Rating Color Coded |
