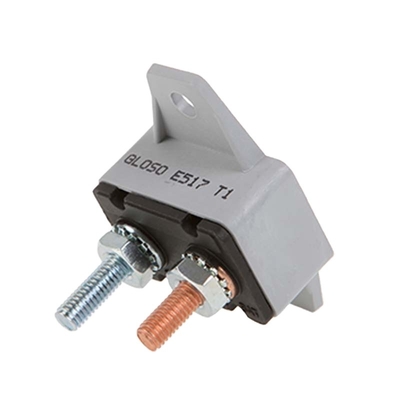

| Part Number | E517 |
| Description | E5 Stud Type Circuit Breaker Used in Battery chargers, trucks, buses, RVs, trolling motors, Electri Vehicles etc Available in ratings from 5 to 50 Amperes. Complies with SAE J553; SAE J1171; UL1500 |
| Family | Thermal Circuit Breakers |
| Category | E5 |
| Series | E517 |
| Voltage | 14Vdc |
| Rated Current | 5-50A |
| Mounting | Horizontal (Crosswise) Mounting Bracket |
| Reset Type | T1, Auto Reset |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) |
| Interrupt Capacity | 2,500A @ 14Vdc |
| Dimension | Length: 1.56" Width: 0.83" Height: 0.669" Unit: inch |
| Weight | 22 g |
| RoHS | Y |
| Standard Pack | 300 |
| HS Code | 85362000 |
| Termination | #10-32 Thread |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) |
Product Advantage:
| 1 |
Thermal Trip-free, Cycling |
| 2 | Branch Circuit Protection: 2.5KA @ 12 Vdc |
| 3 | Main Circuit Protection: 1.5KA @ 12Vdc |
| 4 | 100% Hold, 135% Trip (percent of rating) |
| 5 | #10-32 Thread and Quick Connect options available |
| 6 | IP67 Waterproof function |
| 7 | SAE J553 |
| 8 | SAE J1171 (ignition protected) |
| 9 | ISO 8846 |
| 10 | Stud Mount or Bracket Mount |
[FAQ]
>>>Q1: I’m interested in your products, do you have them in stock?
A: We many items in different amps. Please ask our customer service to check our inventory status.
We usually reply within 12 hours.
>>>Q2: If I’m interested in your product, but I’m not sure if I can use it, can I get samples from you?
A: Yes, we do take sample order! We also can help to suggest items or provide our cross references.
>>>Q3: If I order products from you, how soon can I receive them?
A: It depends on which item do you need, if we have it in stock, we can ship it right away.
It usually takes about 3-5 days of delivery.
>>>Q4: What is your lead time?
A: Please ask our customer service, and tell us which items do you need.
For standard MOQ, the production lead time is about 3-4 weeks.
>>>Q5: What is your packaging style?
A: For standard MOQ, we offer carton bulk packaging.
Please let us know if you have special requests.
