| Part Number | E522 |

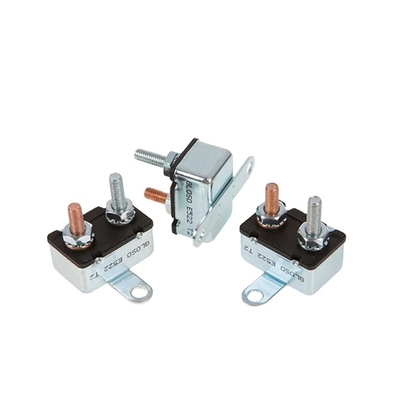

| Description | E5 Stud Type Circuit Breaker Used in Battery chargers, trucks, buses, RVs, trolling motors, Electri Vehicles etc Available in ratings from 5 to 50 Amperes. Complies with SAE J553; SAE J1171; UL1500 |
| Family | Thermal Circuit Breakers |
| Category | E5 |
| Series | E522 |
| Voltage | 14Vdc |
| Mounting | Horizontal (Crosswise) Mounting Bracket |
| Reset Type | T2, Modified Reset |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) |
| Interrupt Capacity | 2,500A @ 14Vdc |
| Dimension | Length: 1.56" Width: 1.248" Height: 0.693" Unit: inch |
| Weight | 26 g |
| RoHS | Y |
| Standard Pack | 300 |
| HS Code | 85362000 |
| Termination | #10-32 Thread |
| Body | Metal |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) |
Select a low amp or high amp thermal circuit breaker for your commercial
applications, transportation equipment, marine, medical, and other power
supplies:
1.Circuit breaker can do is protect the circuit from a high current short circuit.
2.Through its thermal trip it can protect the circuit from overload conditions.
A circuit breaker will trip if too large a draw or current flow occurs across a
thermal shunt inside.
3.Easy for mounting.
4.Trip-off time is customizing and adjustable according to customers' demands.
5.The design allows the thermal circuit breaker to be extremely cost-effective while
remaining durable and reliable.
[FAQ]
>>>Q1: I’m interested in your products, do you have them in stock?
A: We many items in different amps. Please ask our customer service to check our inventory status.
We usually reply within 12 hours.
>>>Q2: If I’m interested in your product, but I’m not sure if I can use it, can I get samples from you?
A: Yes, we do take sample order! We also can help to suggest items or provide our cross references.
>>>Q3: If I order products from you, how soon can I receive them?
A: It depends on which item do you need, if we have it in stock, we can ship it right away.
It usually takes about 3-5 days of delivery.
>>>Q4: What is your lead time?
A: Please ask our customer service, and tell us which items do you need.
For standard MOQ, the production lead time is about 3-4 weeks.
>>>Q5: What is your packaging style?
A: For standard MOQ, we offer carton bulk packaging.
Please let us know if you have special requests.
